带搅拌过滤干燥机_制造时间1990年

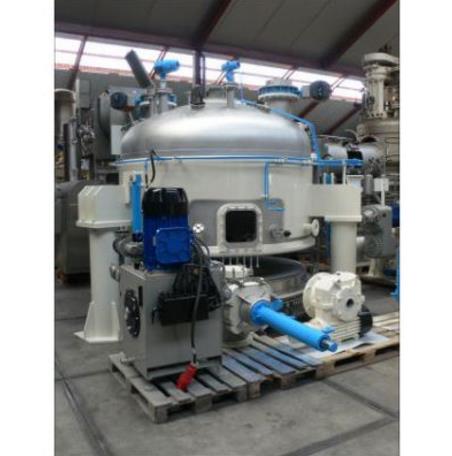

Pressofiltro PF 5000
| Description | PF 5000 Pressofiltro |
| Year of construction | 1990 |
| Manufacturer | Comber |
| Machine no. | 2043 |
| Product contacted material | 904 L |
| hydraulic unit | Yes |
| Mounted on legs | Yes |
| Seal design | PTFE |
| Total volume (l) | 7200 |
| Agitator drive (kW) | 22 kW / 380 V / 660V |
| Slurry volume (l) | 5200 |
| Max. cake volume (l) | 3400 |
| PED | No |
| outlet valve | Yes |
| ATEX | No |
| Vessel diameter (mm) | 2500 |
| Filter area (m²) | 4.5 |
| RPM max. (min-1) | 25 |
| Mechanical seal | No (stuffing box) |
